Description

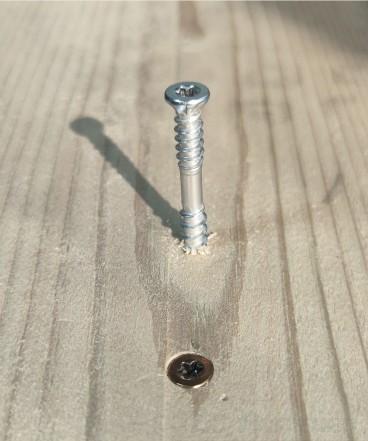

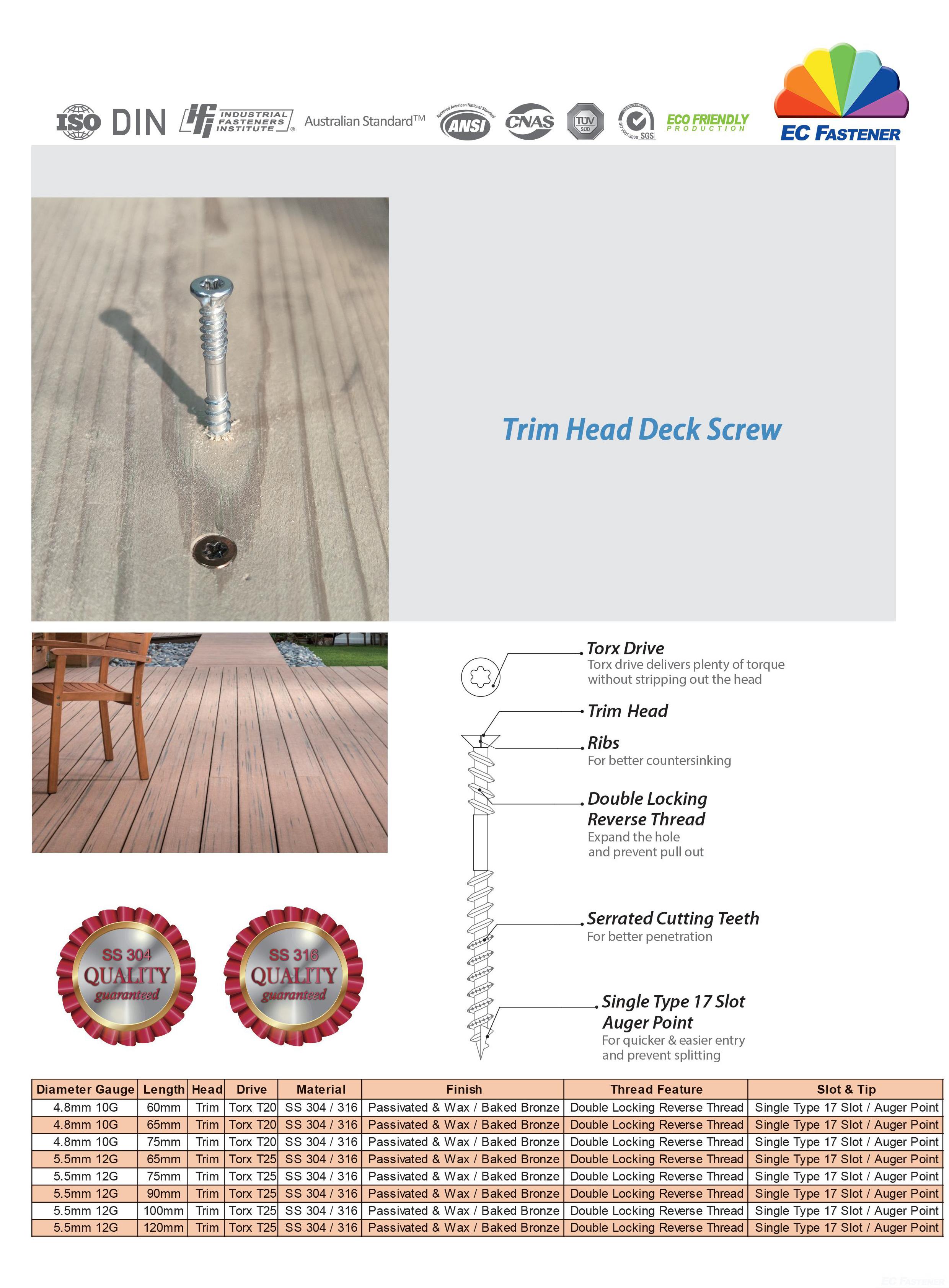

Trim Head Deck Screw
Low Profile Hidden Fix Stainless Steel Deck Fastener for Timber & Composite Decking
Core Construction Features
- Torx Drive: High torque transmission to prevent head stripping during installation
- Trim Low Profile Head with Ribs: Optimized ribs design for smooth full countersinking & hidden mounting
- Double Locking Reverse Thread: Expand bore hole to avoid screw pull-out from deck board
- Serrated Cutting Teeth: Improve penetration into hard composite & solid timber
- Single Type 17 Slot Auger Point: Fast self-drilling entry, effectively stop wood splitting
Material & Surface Finish
Raw Material: Grade SS304, SS316 Stainless Steel
Surface Treatment: Passivated & Wax / Baked Bronze Anti-corrosion Coating
| Diameter Gauge | Length | Head Type | Drive | Material | Finish | Thread Feature | Slot & Tip |
|---|---|---|---|---|---|---|---|
| 4.8mm 10G | 60/65/75mm | Trim Head | Torx T20 | SS304/316 | Passivated & Wax / Baked Bronze | Double Locking Reverse Thread | Single Type17 Slot / Auger Point |
| 5.5mm 12G | 65/75/90/100/120mm | Trim Head | Torx T25 | SS304/316 | Passivated & Wax / Baked Bronze | Double Locking Reverse Thread | Single Type17 Slot / Auger Point |
Application
Hidden fixing for WPC composite deck, solid timber patio deck, outdoor landscape wooden construction projects
