BUGLE HEAD BOARDWALK DECK SCREW

Home Products Deck Screws BUGLE HEAD BOARDWALK DECK SCREW

BUGLE HEAD BOARDWALK DECK SCREW

  • ModelEC-BUGLE-HEAD-BOARDWALK-DECK-SCREW
  • Spec 1Bugle Head Deck Screw with Type17 Cut Point
  • Spec 2Hex Drive, High Torque Anti-Slip Recess
  • Spec 3Fully Sinks Into Hardwood, No Splitting
  • Spec 4Boardwalk, Outdoor Hardwood Deck & Coastal Timber Project
Share
Get a Quote Send Email

Description

BUGLE HEAD BOARDWALK DECK SCREW

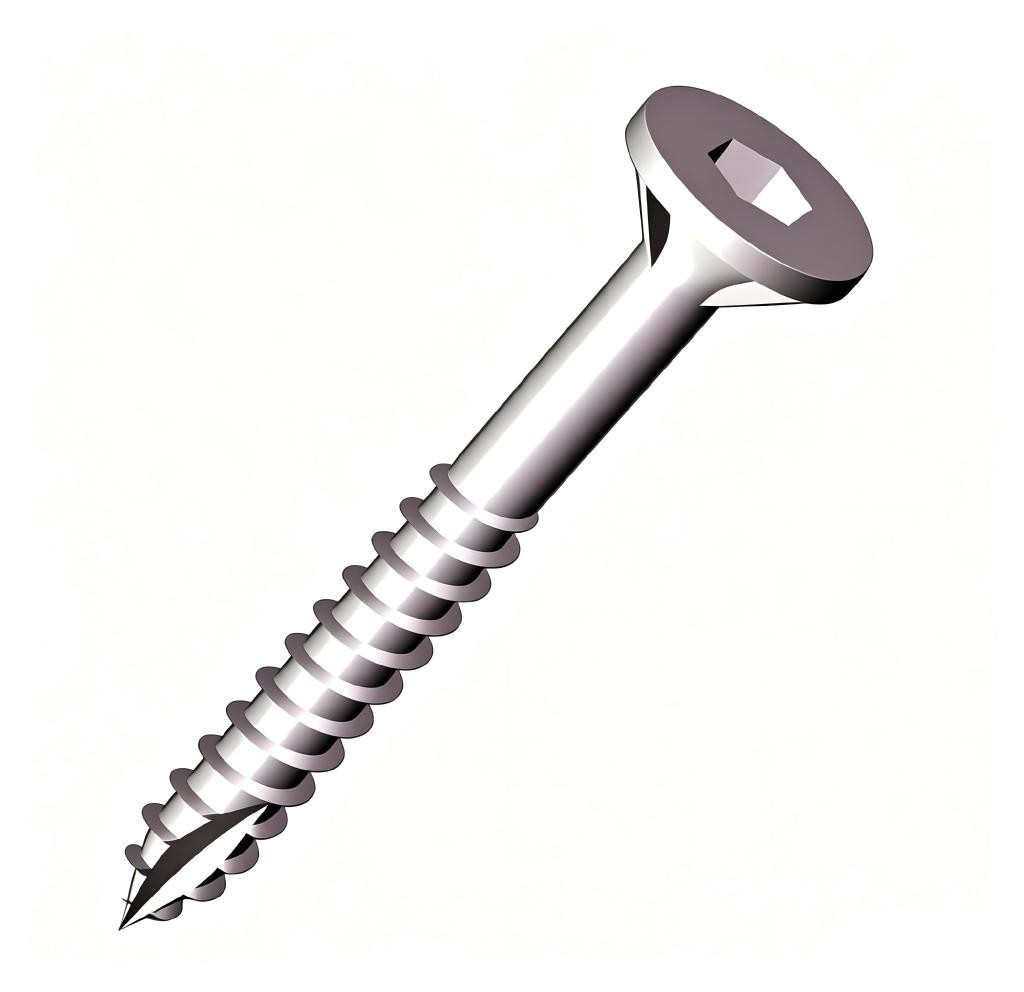

EC Fastener bugle head boardwalk deck screw stainless steel 304 316 internal hex

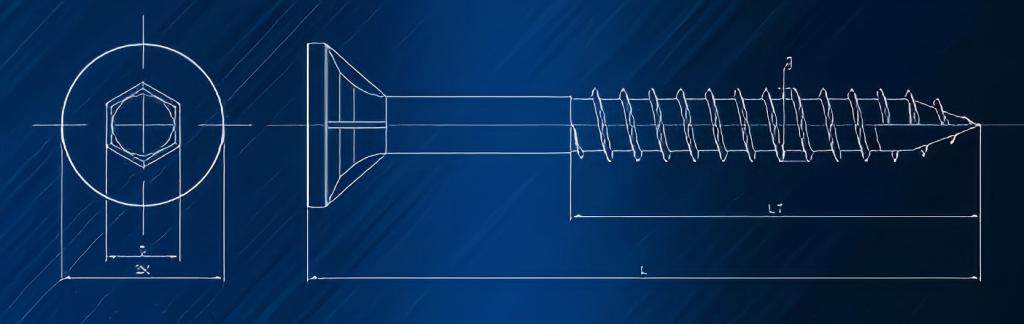

Technical Drawing

EC Fastener bugle head boardwalk deck screw technical drawing dimension chart

Data Table

Size Length Head Drive Material Finish
14-10x50 50mm Bugle head Internal Hex SS 304 /316 Passivated & Wax
14-10x75 75mm Bugle head Internal Hex SS 304 /316 Passivated & Wax
14-10x100 100mm Bugle head Internal Hex SS 304 /316 Passivated & Wax

Downloads

PDF download iconBUGLE HEAD BOARDWALK DECK SCREW

Frequently Asked Questions

Q: What sizes are available for the EC Fastener bugle head boardwalk deck screw?

A: Size 14-10, available in 50mm, 75mm and 100mm lengths.

Q: What material and finish is the boardwalk deck screw?

A: Made of SS 304 or 316 stainless steel with passivated and wax finish.

Q: What head type and drive does it use?

A: Bugle head with internal hex drive.

Q: Where can I get specifications and pricing from ecindustry.com?

A: Contact EC Fastener Corporation through ecindustry.com for the data sheet, MOQ and export pricing.
