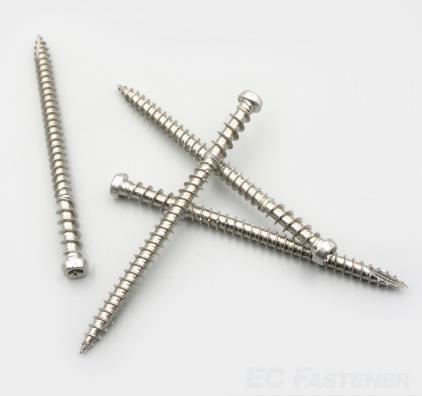

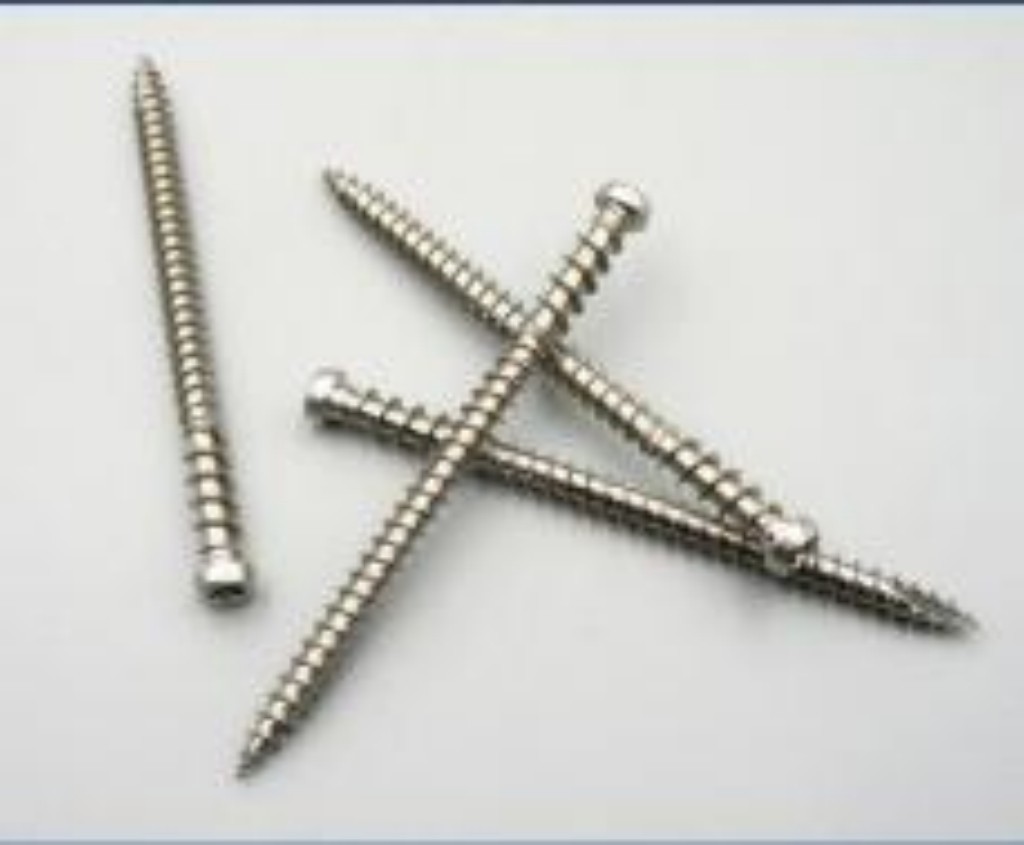

COMPOSITE DECK SCREW
- ModelEC-COMPOSITE-DECK-SCREW
- Spec 1Head Style: Oval Countersunk Head
- Spec 2Application: WPC / Composite Wood Decking
- Spec 3Coating: RXB Anti-rust Coating / Stainless Steel
- Spec 4Advantage: Anti-split, Low Torque Drilling
Description
COMPOSITE DECK SCREW

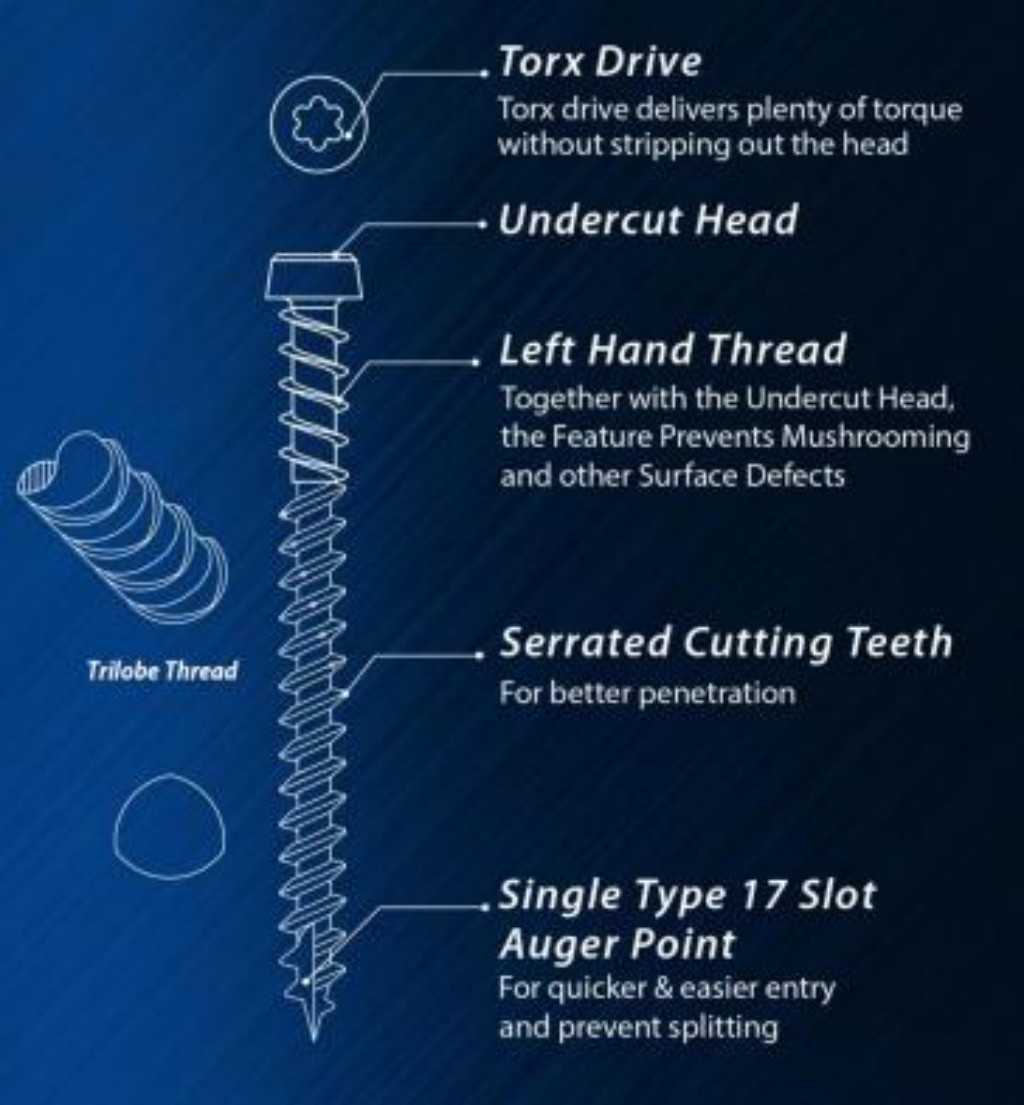

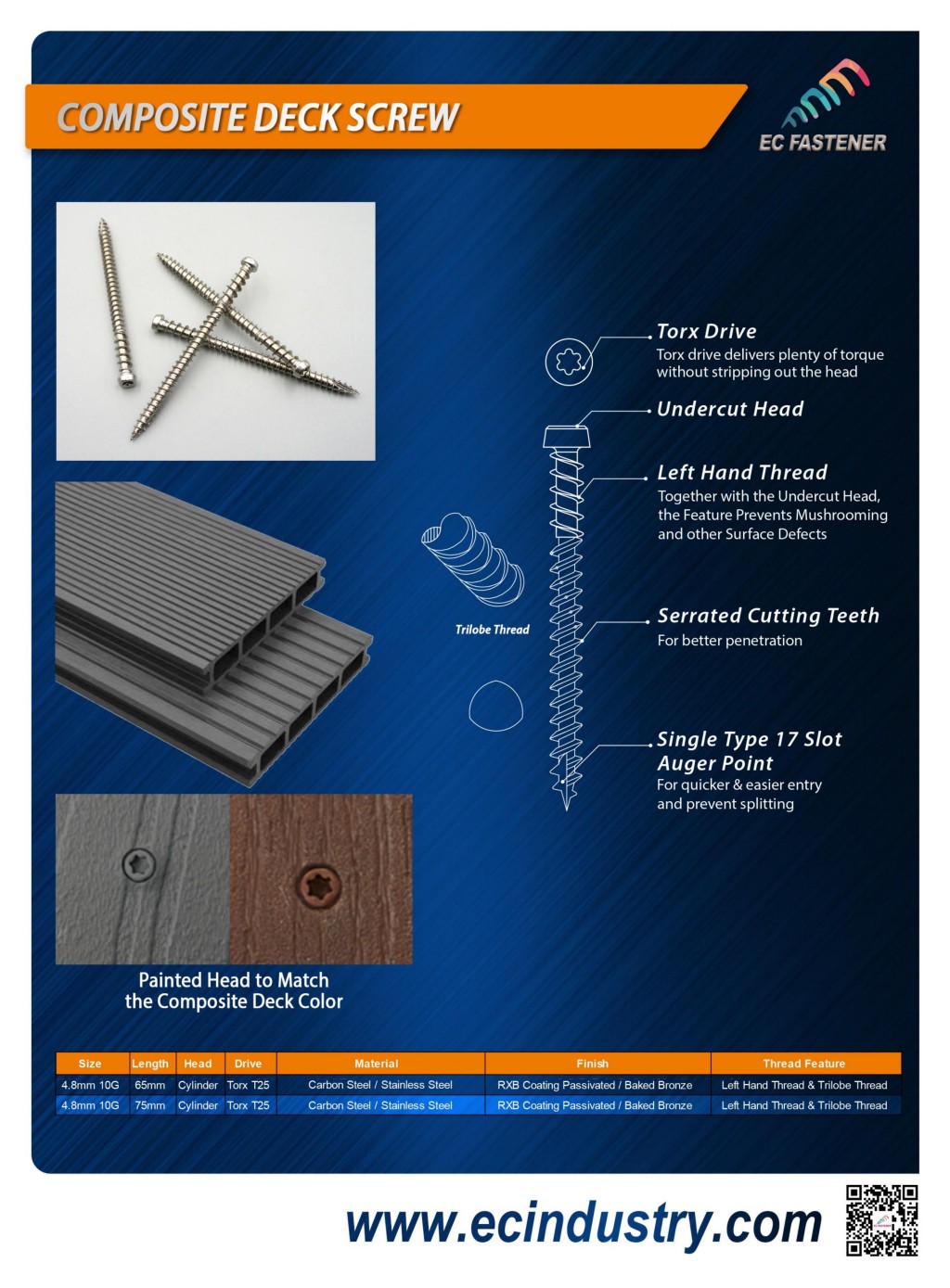

Technical Drawing
Data Table
| Size | Length | Head | Drive | Material | Finish | Thread Feature |
| 4.8mm 10G | 65mm | Cylinder | Torx T25 | Carbon Steel / Stainless Steel | RXB Coating / Passivated / Baked Bronze | Left Hand Thread & Trilobe Thread |
| 4.8mm 10G | 75mm | Cylinder | Torx T25 | Carbon Steel / Stainless Steel | RXB Coating / Passivated / Baked Bronze | Left Hand Thread & Trilobe Thread |
Frequently Asked Questions
Q1. What sizes is the EC Fastener composite deck screw available in?
The composite deck screw is 4.8mm (10G) in diameter, available in 65mm and 75mm lengths, with Torx T25 drive and a cylinder head.
Q2. What materials and finishes are offered?
Available in carbon steel or stainless steel, with RXB coating, passivated or baked bronze finish for exterior corrosion resistance.
Q3. What is the left hand thread and trilobe thread feature?
The left hand thread combined with the trilobe thread design improves holding power and reduces pull-out in composite decking installation.
Q4. Where can I get specifications and pricing from ecindustry.com?
Contact EC Fastener Corporation through ecindustry.com for the data sheet, MOQ and export pricing.
