MULTI PURPOSE SCREW SQUaRE DRIVE

  • ModelEC-UNI-SQUARE-MULTI-PURPOSE-SCREW
  • Spec 1Square Recess Drive Anti-Slip Multi Purpose Wood & Metal Screw
  • Spec 2Sharp Self Drilling Point For Fast Penetration Without Pre-Drilling
  • Spec 3Full Deep Thread Firm Grip On Softwood, Hardwood & Light Metal
  • Spec 4Ruspert Weatherproof Coating For Indoor & Outdoor General Construction
Share
Get a Quote Send Email

Description

MULTI PURPOSE SCREW SQUARE DRIVE

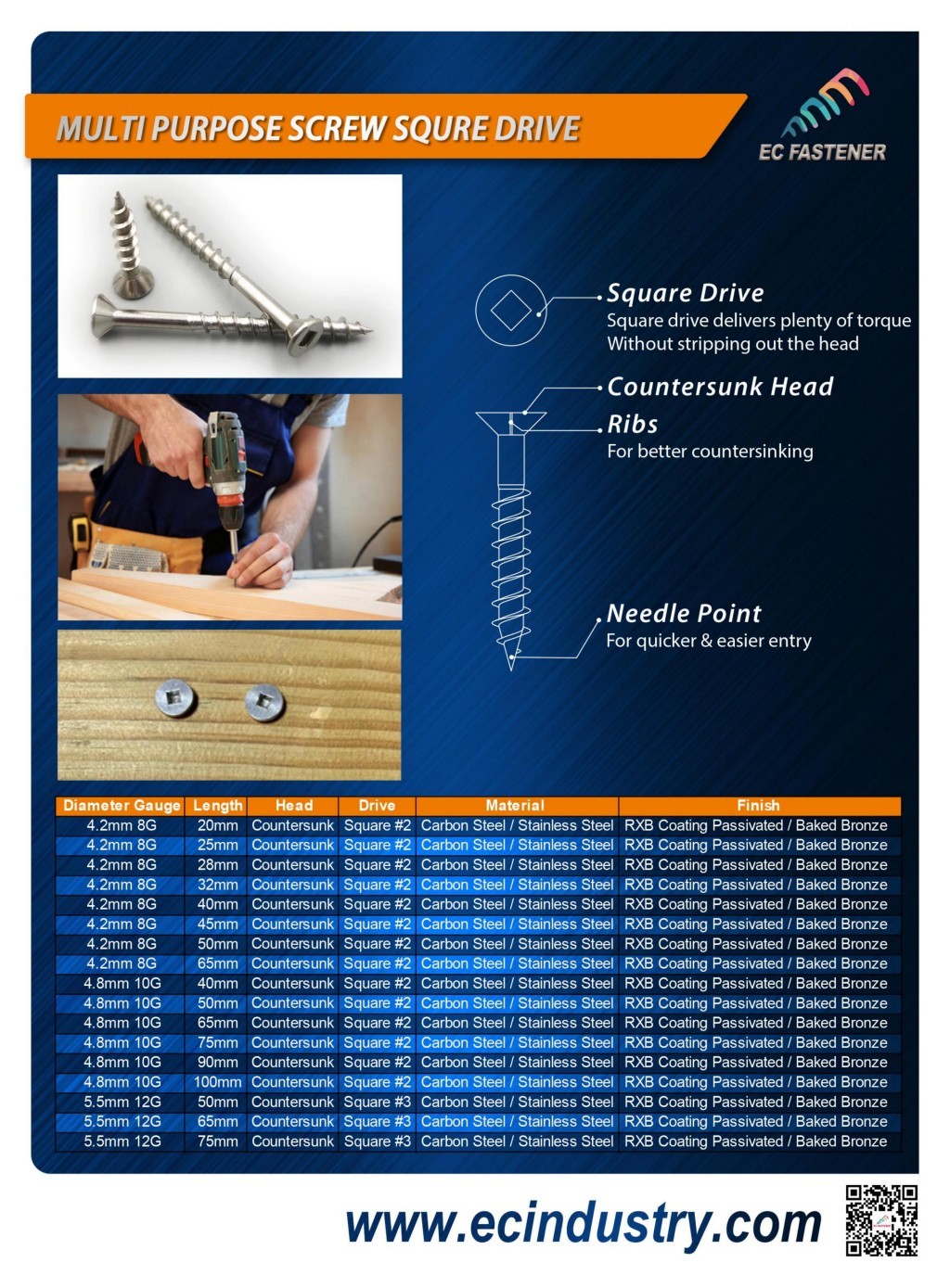

EC Fastener multi‑purpose square drive screw fastener

Technical Drawing

EC Fastener multi‑purpose square drive screw technical drawing dimension chart

Data Table

Diameter Gauge Length Head Drive Material Finish
4.2mm 8G 20mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 25mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 28mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 32mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 40mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 45mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 50mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 65mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 40mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 50mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 65mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 75mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 90mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze

Frequently Asked Questions

Q: What sizes is the EC Fastener multi-purpose square drive screw available in? A: The multi-purpose square drive screw is available from 4.2mm (8G) to 4.8mm (10G) in diameter, with 20mm to 90mm lengths and a countersunk head.

Q: What drive does this multi-purpose screw use? A: The screw uses a Square #2 drive.

Q: What materials and finishes are offered? A: Available in carbon steel or stainless steel, with RXB coating passivated or baked bronze finish for corrosion resistance.

Q: Where can I get specifications and pricing from ecindustry.com? A: Contact EC Fastener Corporation through ecindustry.com for the data sheet, MOQ and export pricing.
