MULTI PURPOSE SCREW SQUARE PHILIPS COMBO DRIVE

  • ModelEC-UNI-SQUARE-MULTI-PURPOSE-SCREW
  • Spec 1Square Recess Drive Anti-Slip Multi Purpose Wood & Metal Screw
  • Spec 2Sharp Self Drilling Point For Fast Penetration Without Pre-Drilling
  • Spec 3Full Deep Thread Firm Grip On Softwood, Hardwood & Light Metal
  • Spec 4Ruspert Weatherproof Coating For Indoor & Outdoor General Construction
Share
Get a Quote Send Email

Description

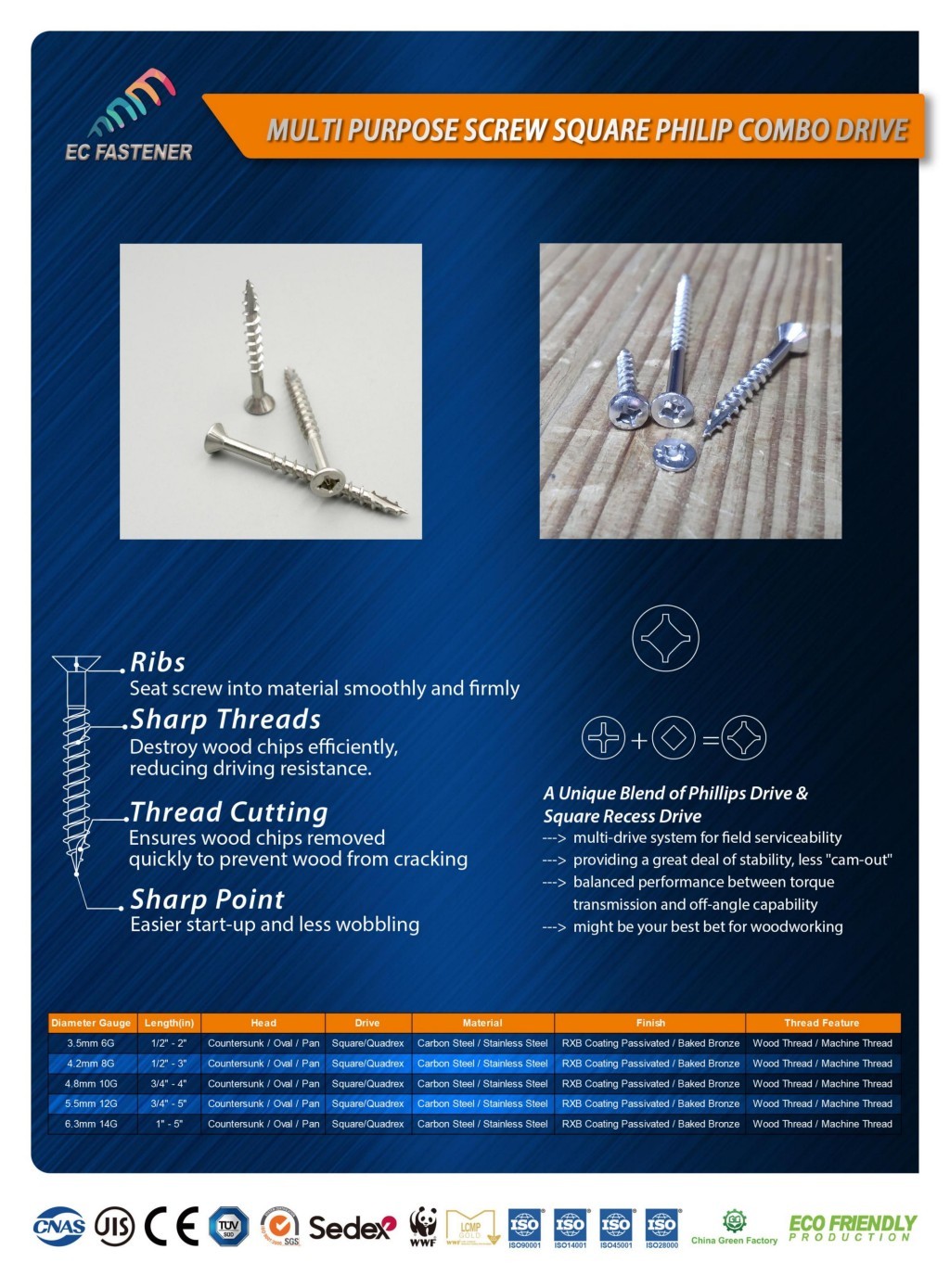

MULTI PURPOSE SCREW SQUARE PHILIP COMBO DRIVE

EC Fastener multi‑purpose screw square philip combo drive fastener

Technical Drawing

EC Fastener multi‑purpose screw technical drawing dimension chart

Application Scene Image

EC Fastener multi‑purpose screw real application scene

Data Table

Diameter Gauge Length Head Drive Material Finish
4.2mm 8G 20mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 25mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 28mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 32mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 40mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 45mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 50mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.2mm 8G 65mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 40mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 50mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 65mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 75mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 90mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
4.8mm 10G 100mm Countersunk Square #2 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
5.5mm 12G 50mm Countersunk Square #3 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
5.5mm 12G 65mm Countersunk Square #3 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze
5.5mm 12G 75mm Countersunk Square #3 Carbon Steel / Stainless Steel RXB Coating Passivated / Baked Bronze

Downloads

EC Fastener multi‑purpose screw pdf download icon MULTI PURPOSE SCREW SQUARE DRIVE

Frequently Asked Questions

Q1. What sizes is the EC Fastener multi-purpose screw available in?

The multi-purpose screw is available from 4.2mm (8G) to 5.5mm (12G) in diameter, with 20mm to 100mm lengths, countersunk head and square drive.

Q2. What drives are available for the multi-purpose screw?

Square #2 drive is used for the 4.2mm and 4.8mm sizes, and Square #3 drive for the 5.5mm sizes.

Q3. What materials and finishes are offered?

Available in carbon steel or stainless steel, with RXB coating passivated or baked bronze finish for corrosion resistance.

Q4. Where can I get specifications and pricing from ecindustry.com?

Contact EC Fastener Corporation through ecindustry.com for the data sheet, MOQ and export pricing.
