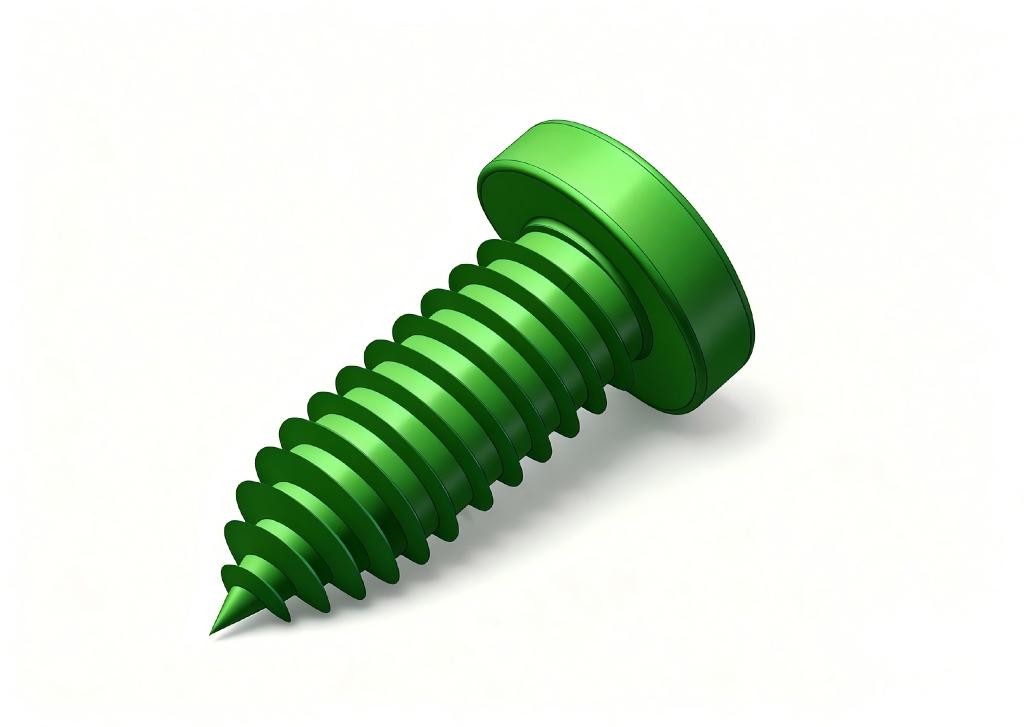

LIGHT STEEL FRAMING LGS SCREW

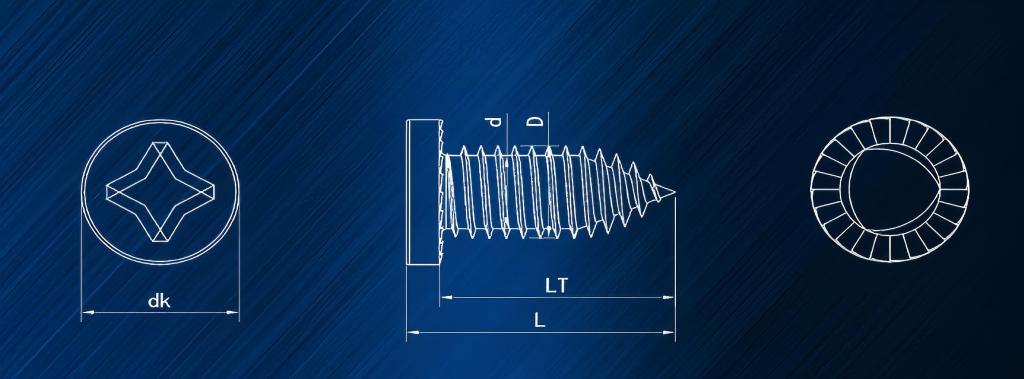

Technical Drawing
Data Table
| Geometric properties | ||||||
| Nominal Ø [mm] | Drive | dk | D | d | LT | L |
| 6.0 | Philip NO.3 | ∅9.40~9.60 | ∅5.90~6.10 | ∅4.78~4.82 | Full Thread | 16.0 |
| Material | Carbon Steel | |||||
| Coating | Ruspert | |||||
| Point | Self-drilling with serrated | |||||
Geometric properties
Nominal Ø [mm]
6.0
Shaft Øs [mm]
5.5
Inner Øi [mm]
4.8
Mechanical properties
Tensile Rm [Mpa]
≥1000
Max Tensile load [KN]
≥20
Shear τ [KN]
≥3.5
Surface hardness [HV]
530~750
Core hardness [HV]
250~450
Torque [N·m]
≥19
Bending [°]
≥15°

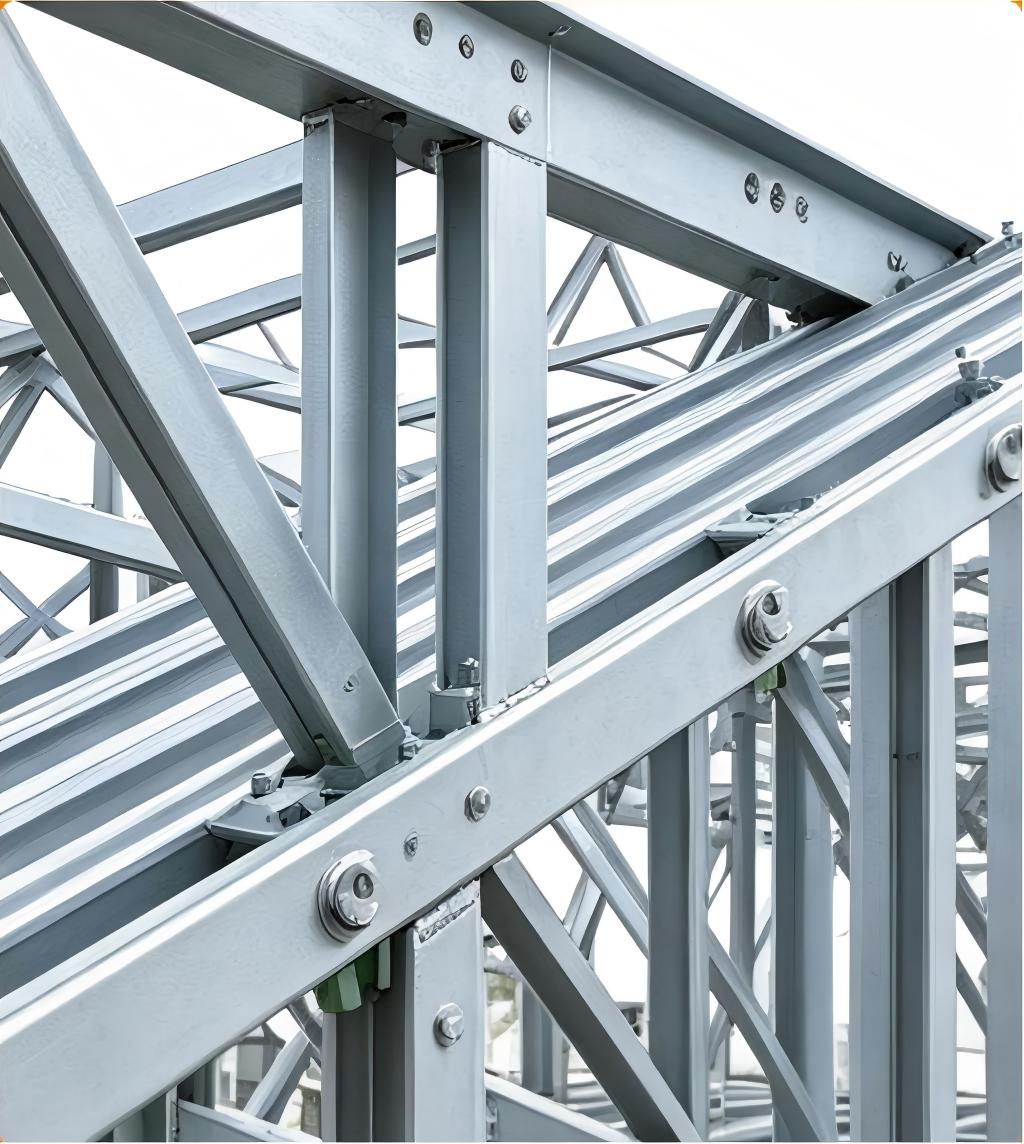

Application Scene Image
