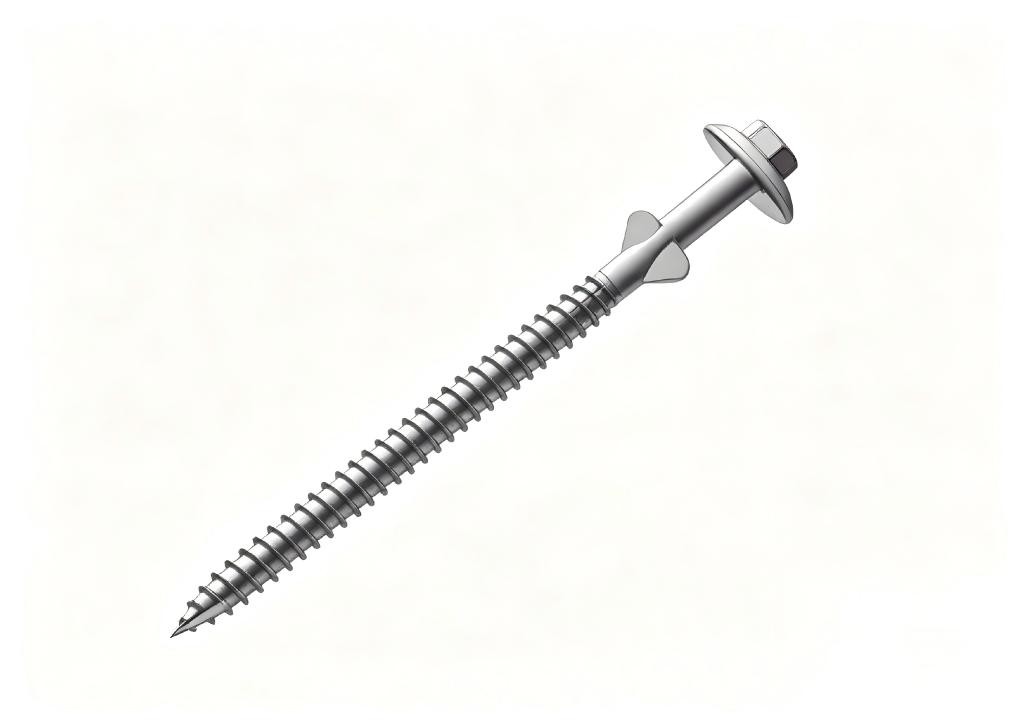

POLYCARBONATE ROOFING SCREW

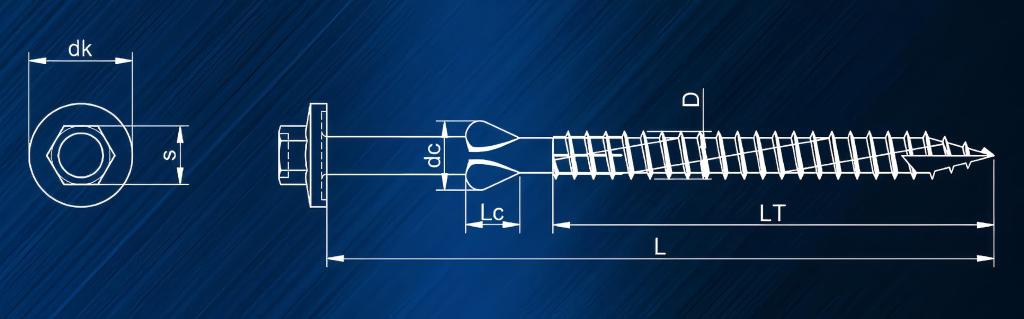

Technical Drawing
Data Table
| Geometric Properties | |||||||||
| Nominal Ø [mm] | Drive | dk | S | dc | D | d | Lc | LT | L |
| 14G | 5/16 HEX | ∅13.97~14.78 | 7.78~7.92 | 10.5~11.1 | ∅6.3~6.45 | ∅4.7~5.0 | 7 | 86 | 130 |
| Material | Stainless Steel | ||||||||
| Coating | Passivation & Ruspert | ||||||||
| Point | Type 17 | ||||||||
| Geometric Properties | Nominal [mm] | 6.3 |
| Shaft s [mm] | 5.4 | |
| Inner i [mm] | 4.9 | |
| Mechanical Properties | Tensile Rm [Mpa] | 700 |
| Yield Rp0.2 [Mpa] | 560 | |
| Shear [KN] | / | |
| Surface Hardness[HV] | / | |
| Core Hardness[HV] | 250 | |
| Torque [N·m] | 11.4 | |
| Bending [°] | 40° |
Downloads
Frequently Asked Questions
Q: What are the dimensions of the EC Fastener polycarbonate roofing screw?
A: 14G gauge, 5/16 hex drive, nominal diameter 6.3mm, length 130mm, with Type 17 point for polycarbonate roofing installation.
Q: What material and coating is the polycarbonate roofing screw?
A: Made of stainless steel with passivation and Ruspert coating.
Q: What are the mechanical properties?
A: Tensile strength 700 MPa, yield 560 MPa, core hardness 250 HV, torque 11.4 N·m and bending 40°.
Q: Where can I get specifications and pricing from ecindustry.com?
A: Contact EC Fastener Corporation through ecindustry.com for the data sheet, MOQ and export pricing.
