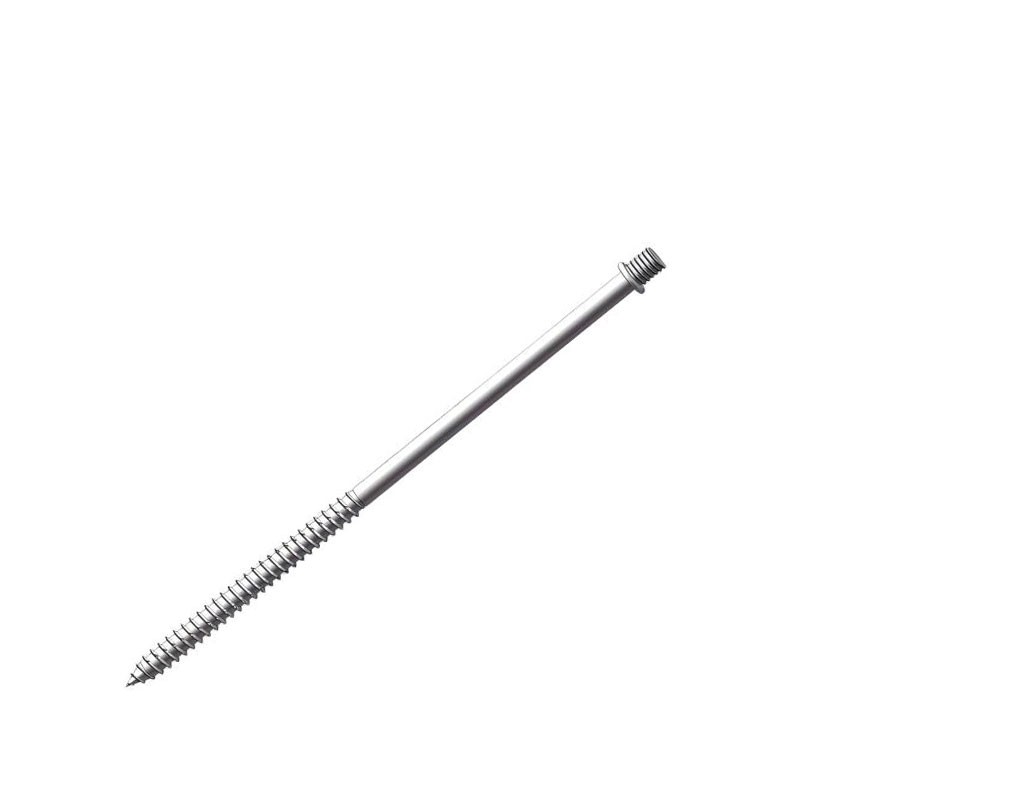

MALE HURRICANE BOLT
- ModelEC-HB-MALE-HURRICANE-BOLT
- Spec 1Material: 304/316 Stainless Steel
- Spec 2Size: 1/4
- Spec 3Finish: Plain,Zinc Plated
- Spec 4Application: Masonry,Shutter,Concrete
Description
MALE HURRICANE BOLT

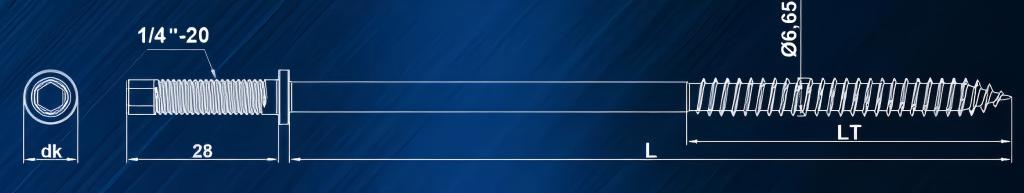

Technical Drawing
Data Table
| Geometric Properties | |||||
| Nominal [mm] | Drive | dk | D | L1 | L |
| 6.5 | |||||
| 6.5 | 1/4 -20 Wing Nut | 9.50~10.00 | 6.65~6.95 | 76 | 187 |
| 6.5 | 1/4 -20 Wing Nut | 9.50~10.00 | 6.65~6.95 | 76 | 82 |
| Material | Carbon Steel C1022 | ||||
| Coating | Dacromet | ||||
| Point | Sharp Point | ||||
| Geometric Properties | Nominal Ø [mm] | 6.7 |
| Shaft Øs [mm] | 5.5 | |
| Inner Øi [mm] | 5 | |
| Mechanical Properties | Tensile Rm [Mpa] | ≥1000 |
| Yield Rp0.2 [Mpa] | ≥900 | |
| Shear τ[KN] | 3.5 | |
| Surface Hardness[HV] | 450~650 | |
| Core Hardness[HV] | 320~450 | |
| Torque [N·m] | ≥16.8 | |
| Bending [°] | ≥25° |

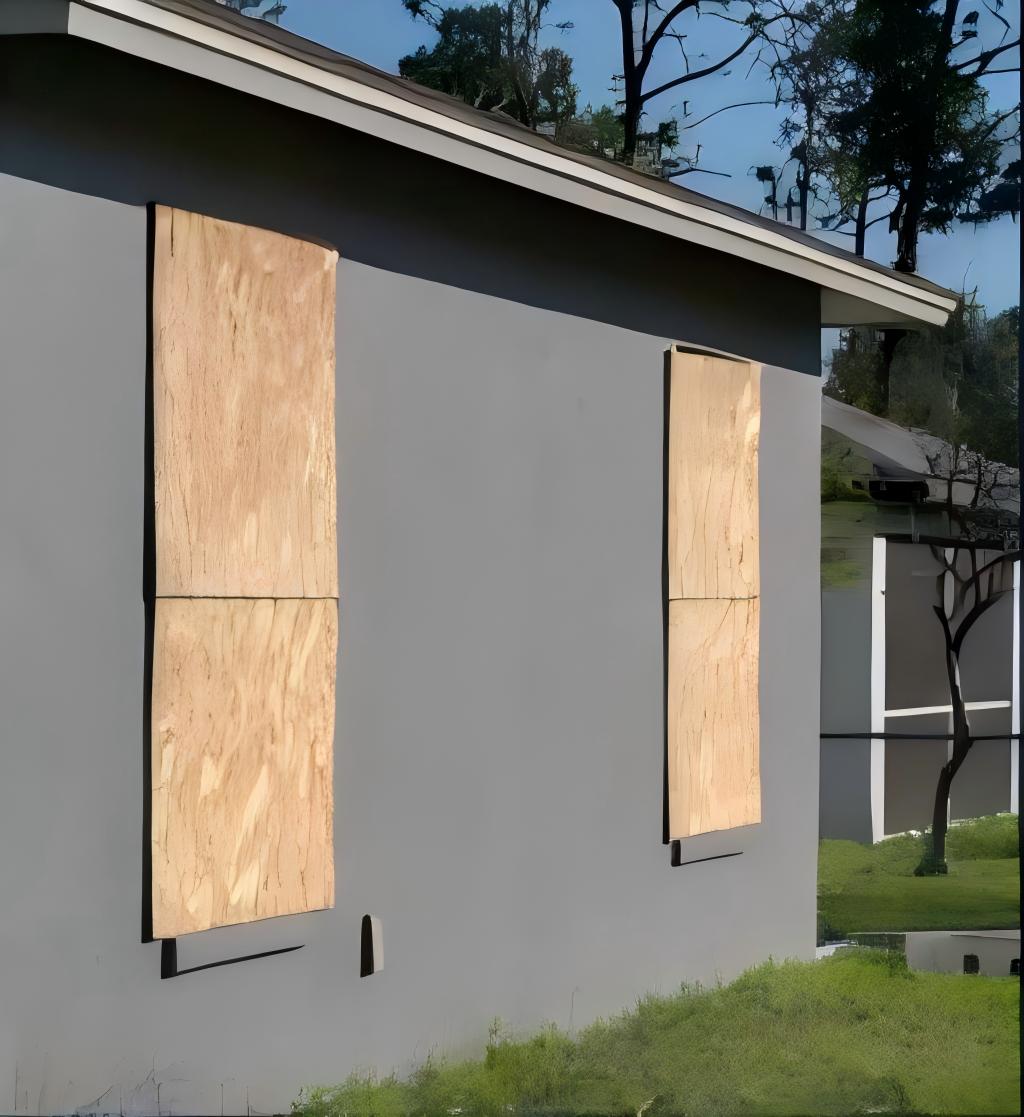

Application Scene Image
MALE HURRICANE BOLT
