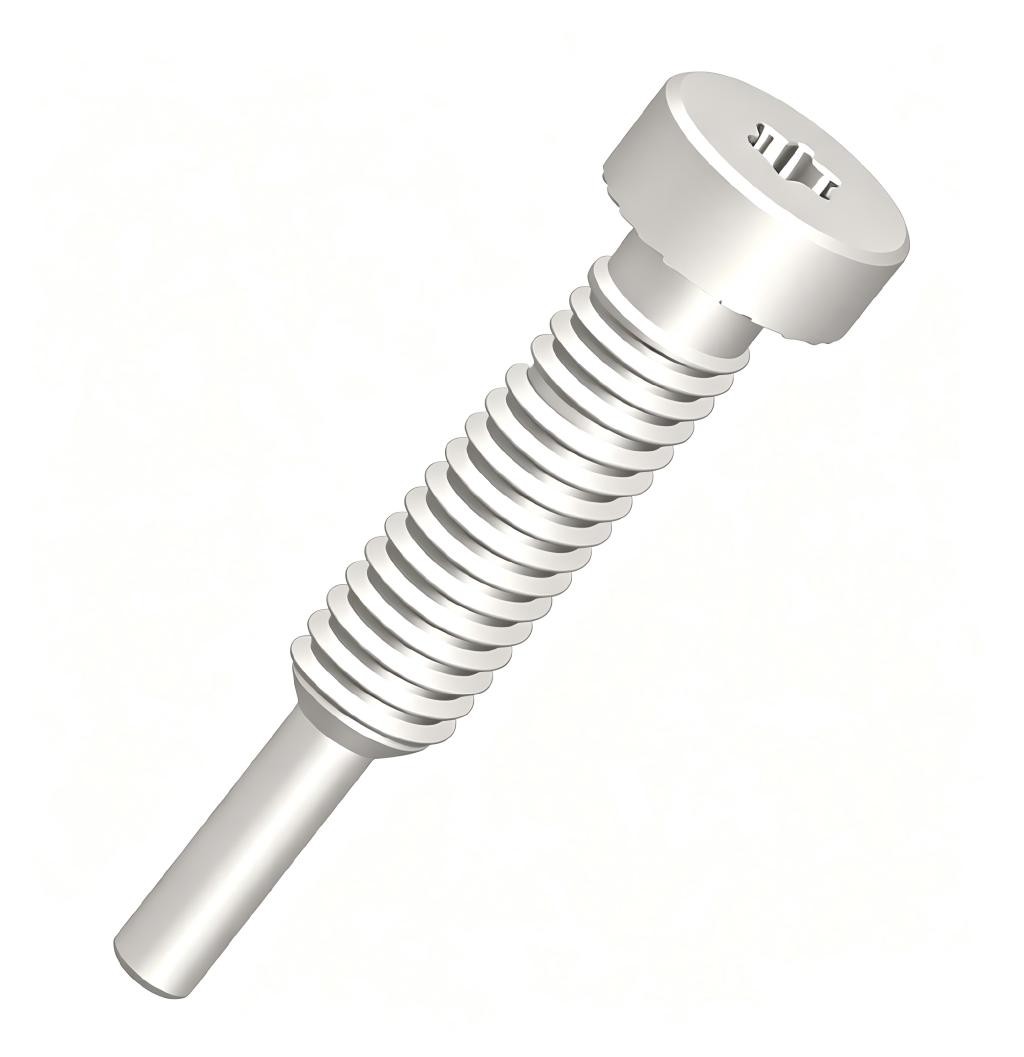

CYLINDER HEAD GUIDE PIN SOLAR SCREW
Data Table
| Size | Length | Head | Drive | Material | Finish | Thread Feature | Slot & Tip |
| M8*42.5 | 42.5mm | Cylindrical head | Torx T20 | SS 304 | Passivated & Wax | Special point |
| Geometric Properties | Nominal Ø [mm] | 8 |
| Shaft Øs [mm] | 7.2 | |
| Inner Øi [mm] | / | |
| Mechanical Properties | Tensile Rm [Mpa] | ≥700 |
| Yield Rp0.2 [Mpa] | ≥450 | |
| Shear τ[KN] | 3.2 | |
| Surface Hardness[HV] | / | |
| Core Hardness[HV] | ≥250 | |
| Torque [N m] | ≥13 | |
| Bending [°] | ≥40° |
Downloads
CYLINDER HEAD GUIDE PIN SOLAR SCREW
Frequently Asked Questions
Q: What are the dimensions of the EC Fastener cylinder head guide pin solar screw?
A: Size M8x42.5, cylindrical head, Torx T20 drive, with special point for solar panel installation.
Q: What material and finish is the solar screw?
A: Made of SS 304 stainless steel with passivated and wax finish.
Q: What are the mechanical properties?
A: Tensile strength ≥700 MPa, yield ≥450 MPa, shear 3.2 kN, core hardness ≥250 HV, torque ≥13 N·m and bending ≥40°.
Q: Where can I get specifications and pricing from ecindustry.com?
A: Contact EC Fastener Corporation through ecindustry.com for the data sheet, MOQ and export pricing.
