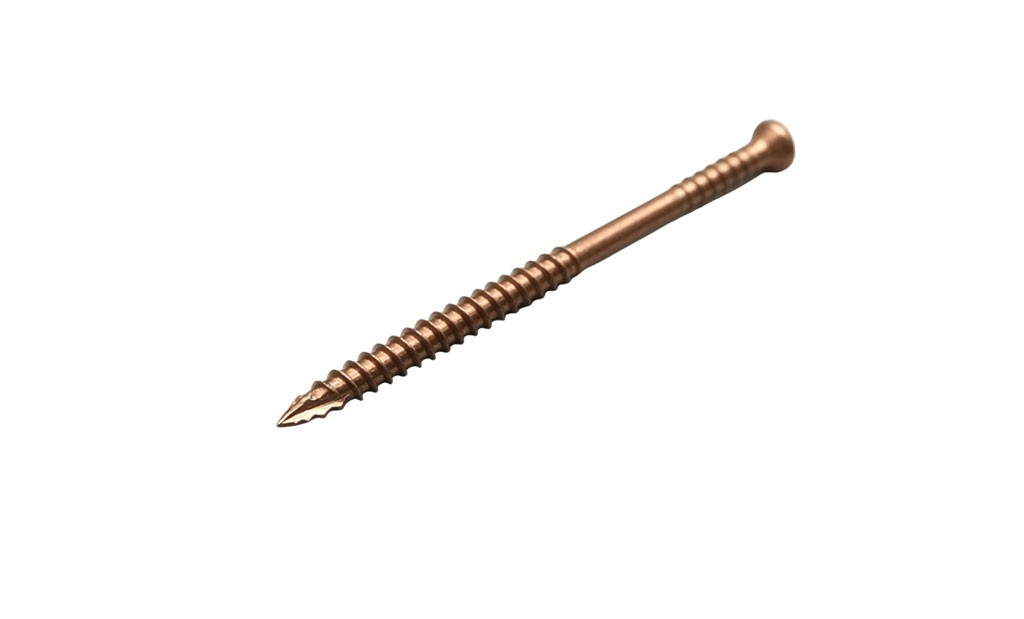

TRIM HEAD CLADDING SCREW
- ModelEC-TRIM-HEAD-CLADDING-SCREW
- Spec 14.2MM 8G DIAMETER
- Spec 2MODIFIED TRIM HEAD
- Spec 3TORX T15 DRIVE
- Spec 4DOUBLE LOCKING REVERSE THREAD
Description
TRIM HEAD CLADDING SCREW

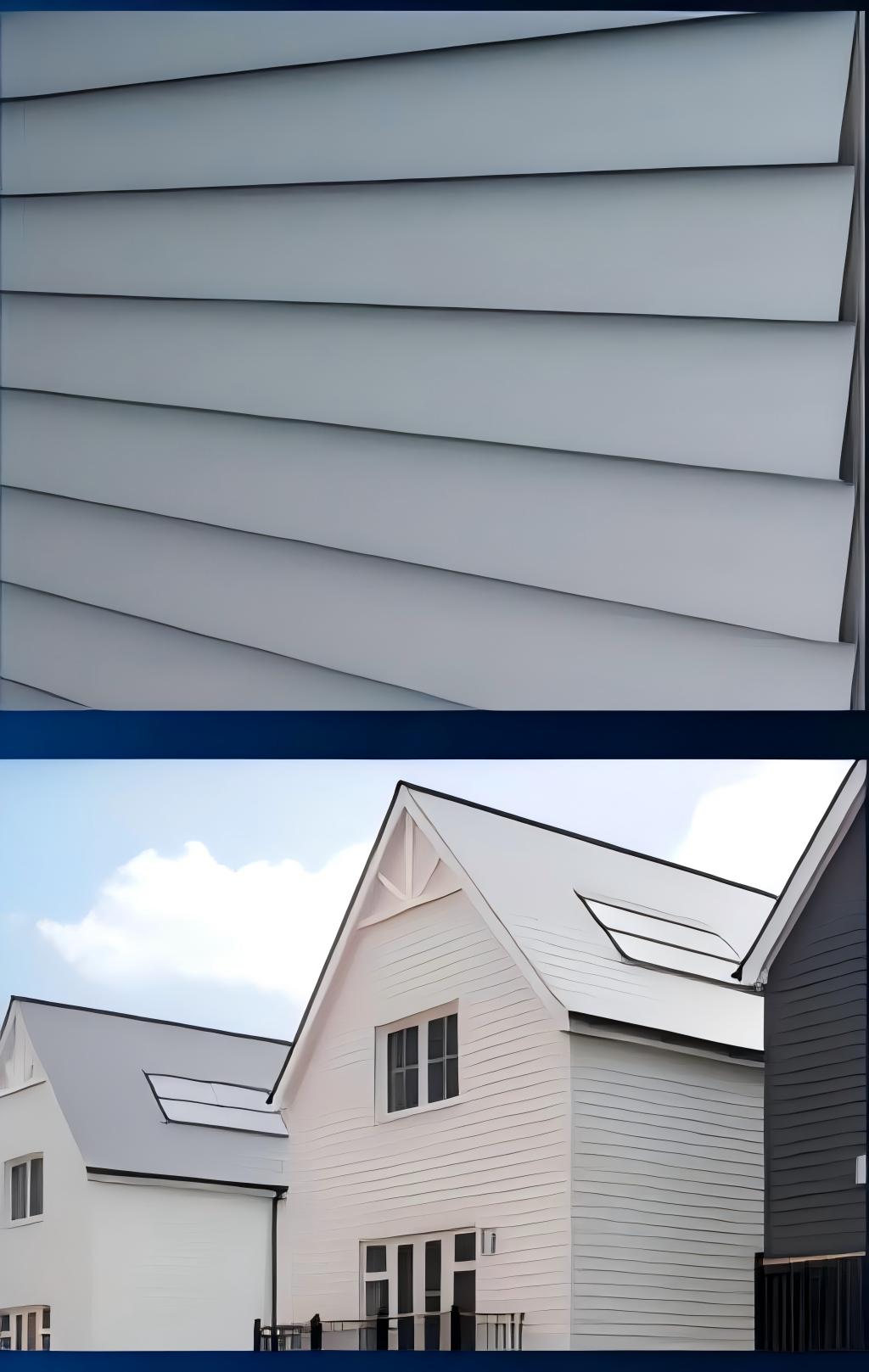

Application Scene Image
Data Table
| Diameter Gauge | Length | Head | Drive | Material | Finish | Thread Feature |
| 4.2mm 8G | 65mm | Modified Trim | Torx T15 | Carbon Steel / Stainless Steel | RXB Coating Passivated / Baked Bronze | Double Locking Reverse Thread |
| 4.2mm 8G | 75mm | Modified Trim | Torx T15 | Carbon Steel / Stainless Steel | RXB Coating Passivated / Baked Bronze | Double Locking Reverse Thread |
| 4.2mm 8G | 90mm | Modified Trim | Torx T15 | Carbon Steel / Stainless Steel | RXB Coating Passivated / Baked Bronze | Double Locking Reverse Thread |
Downloads
Frequently Asked Questions
Q1. What sizes is the EC Fastener trim head cladding screw available in?
The trim head cladding screw is 4.2mm (8G) in diameter, available in 65mm, 75mm and 90mm lengths, with Torx T15 drive and a modified trim head.
Q2. What materials and finishes are offered?
Available in carbon steel or stainless steel, with RXB coating passivated or baked bronze finish for exterior corrosion resistance.

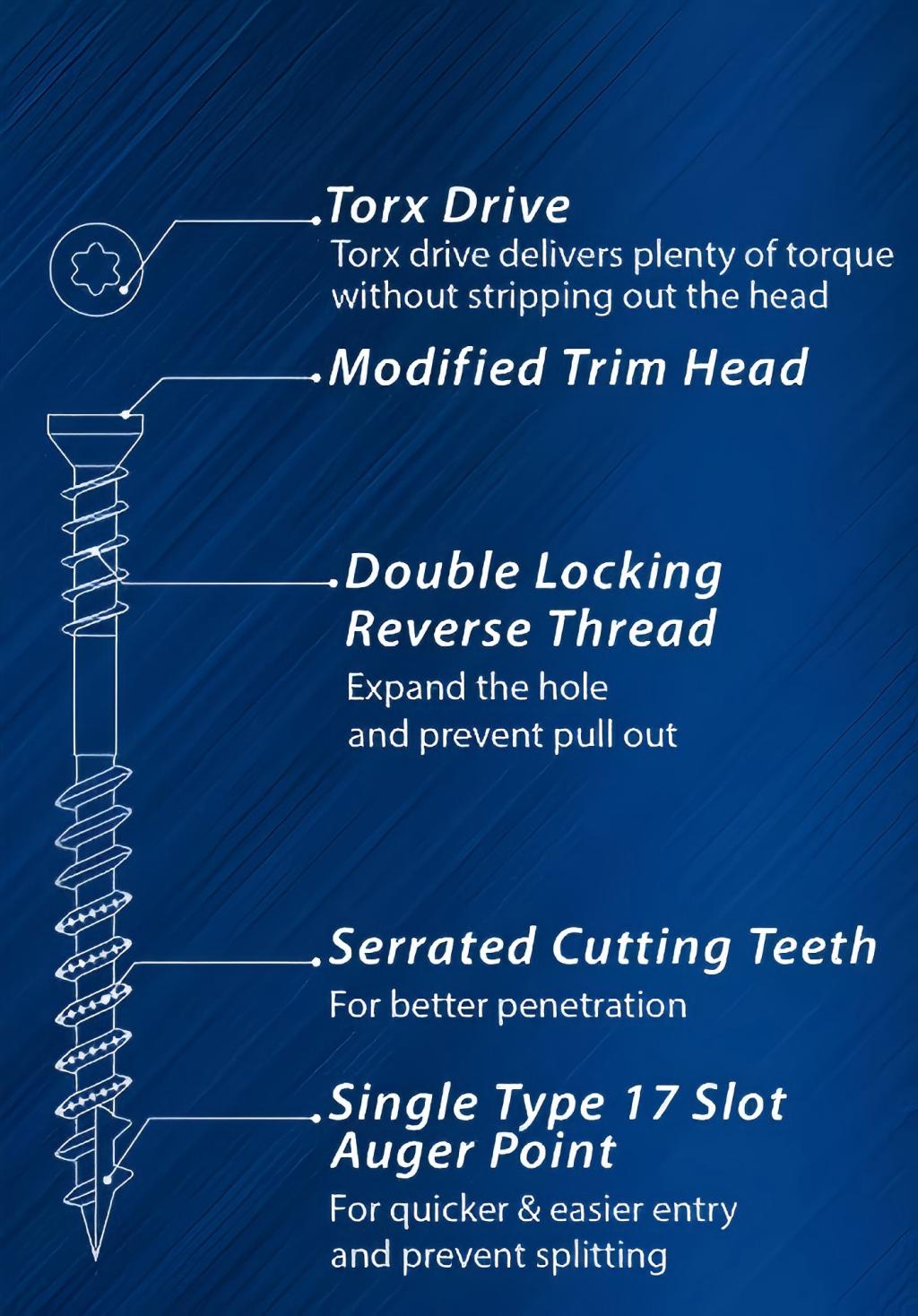

Q3. What is the double locking reverse thread feature?
The double locking reverse thread helps reduce pull-out and secures the screw firmly in exterior cladding installation.
Q4. Where can I get specifications and pricing from ecindustry.com?
Contact EC Fastener Corporation through ecindustry.com for the data sheet, MOQ and export pricing.
